NATO ENCRYPTED RATT
KG-84C ENCRYPTED

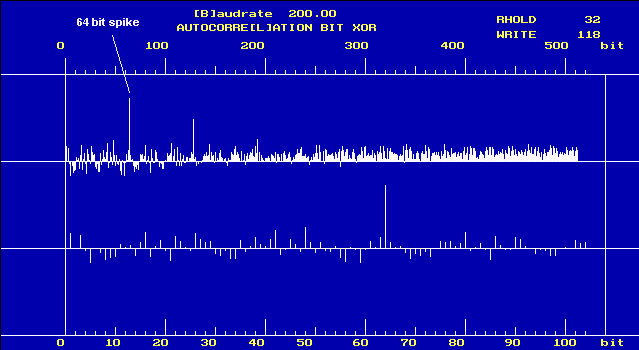

The ACF of this online encrypted system only
shows a characteristic 64 bit spike during the
synchronization procedure, that starts with fast reversals and then goes
into standard KG-84C compatible encryption

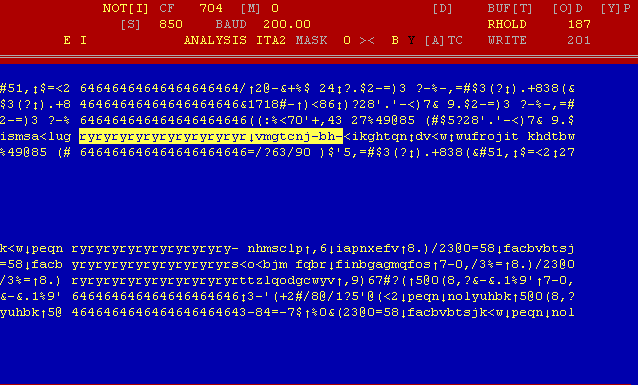

("....RYRYRYRYVMGTCNJBH...."
intro). During traffic-condition, the system shows
no apparent ACF (Mark/ Space ratio of 1:1)!
