CHINESE 30-TONE WAVEFORM

(30 x 60 Bd BPSK)

FFT-SPECTRA

---

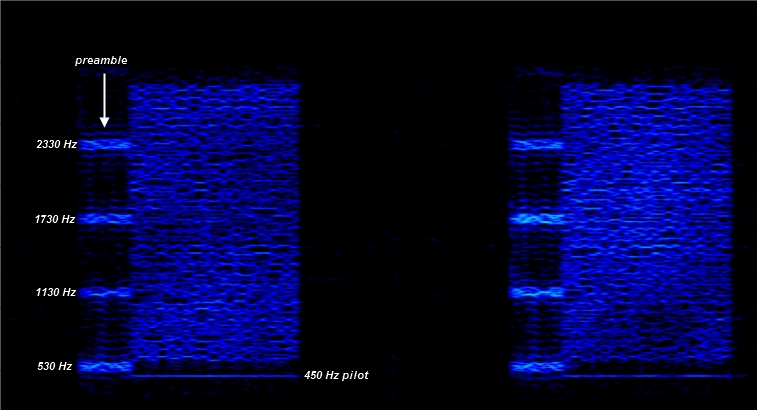

• FFT-spectrum vs. time frequency and signal intensity

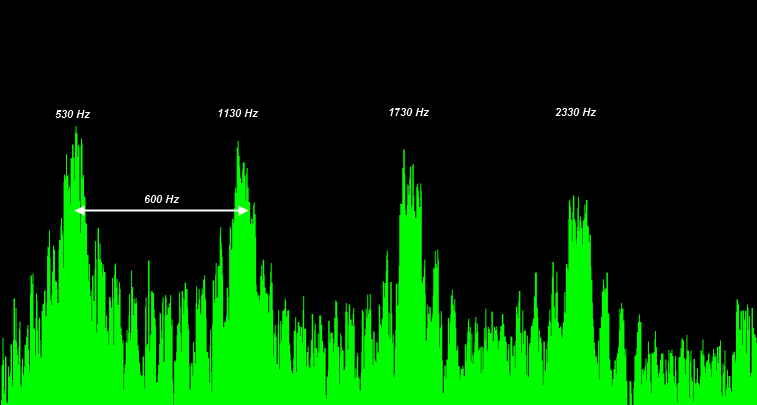

• FFT-spectrum vs. time and frequency (modem preamble)

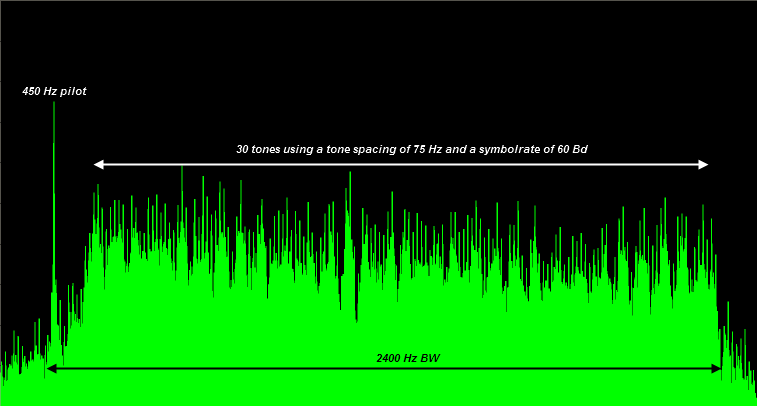

• FFT-Spectrum vs. freq. and signal intensity (data portion of the signal)

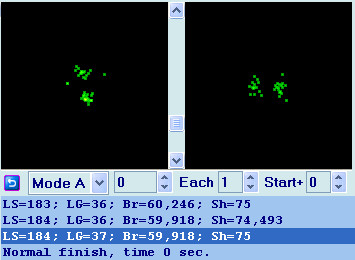

• Phase plane spectrum while sending BPSK modulated traffic

---
