OTHR-SYSTEM
12.50 Hz PULSING
(Trials in April 2011, operated
from UK Bases Akrotiri [TX] and Agios Nikolaos / Cyprus [RX])
-

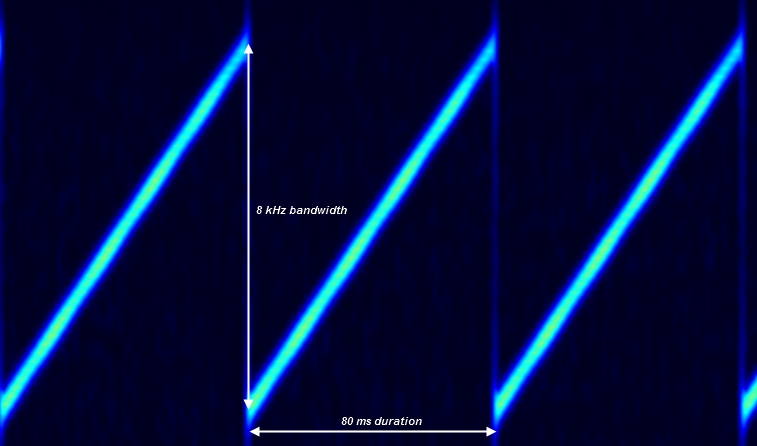

FFT-Spectrum versus time, frequency and
signal intensity (Radar using 8 kHz BW)
-

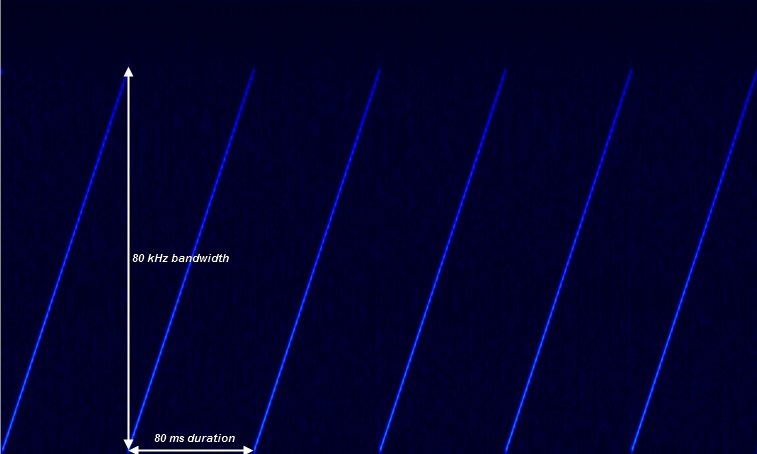

FFT-Spectrum versus time, frequency and
signal intensity (Radar using 80 kHz BW)
-

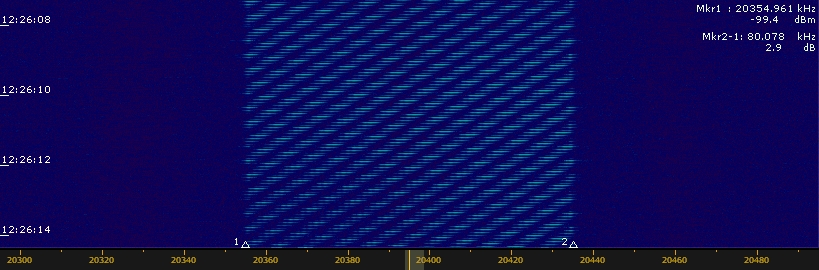

Cyprus based OTHR (12.50 Hz PRF/80 kHz
BW) as seen on a wide band receiver:
-

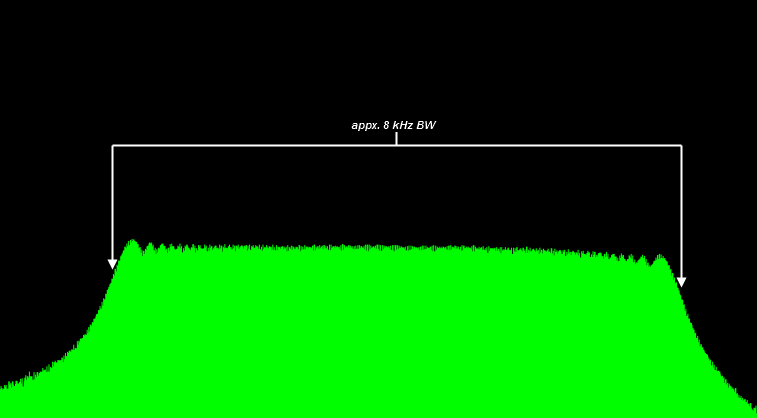

FFT-Spectrum versus frequency and signal
intensity (Radar using 8 kHz BW)
(full bandwidth)
-

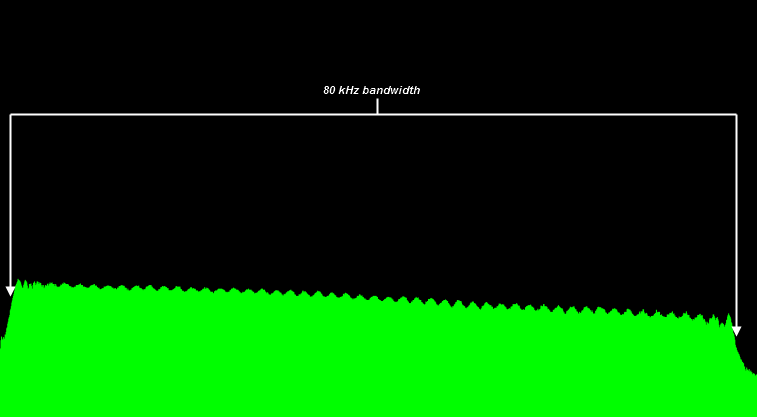

FFT-Spectrum versus frequency and signal
intensity (Radar using 80 kHz BW)
(full bandwidth)
