DIGISONDE
IONOSPHERIC SOUNDER
(30 kHz bandwidth)
FFT SPECTRA

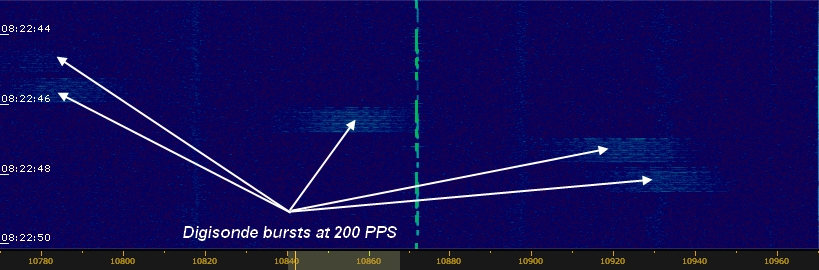

FFT-Spectrum versus time, frequency and signal intensity of a 200 PPS signal (display of 15 kHz bandwidth only)

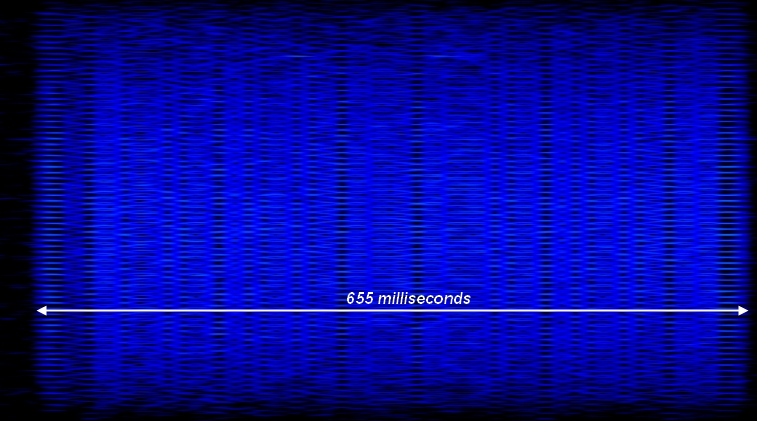

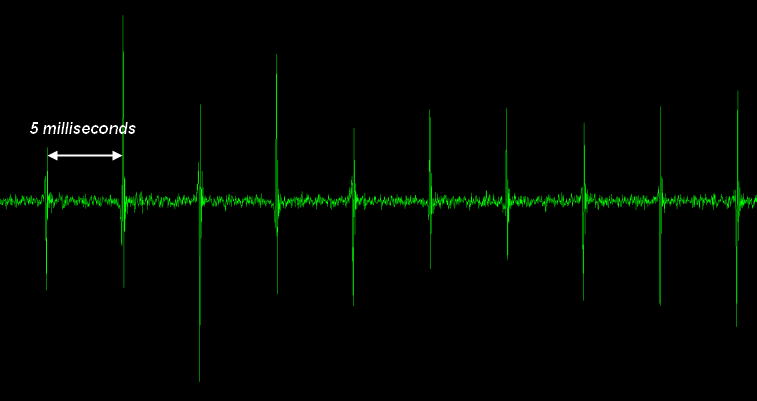

FFT-Spectrum versus timing and signal intensity (200 PPS signal):

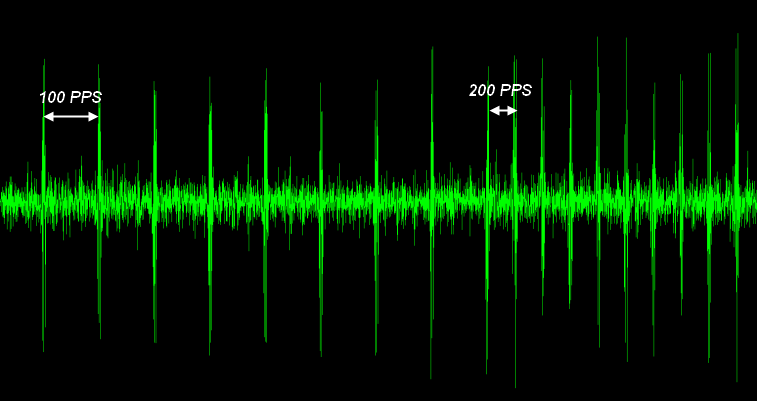

FFT-Spectrum versus timing and signal intensity (100/200 PPS signal):
DIGISONDE sounder as seen on a wide band receiver
