MIL-STD 188-203-1A

LINK 11 / TADIL-A / ALLIGATOR

2250 bps (15 x 75 Bd QPSK)

---

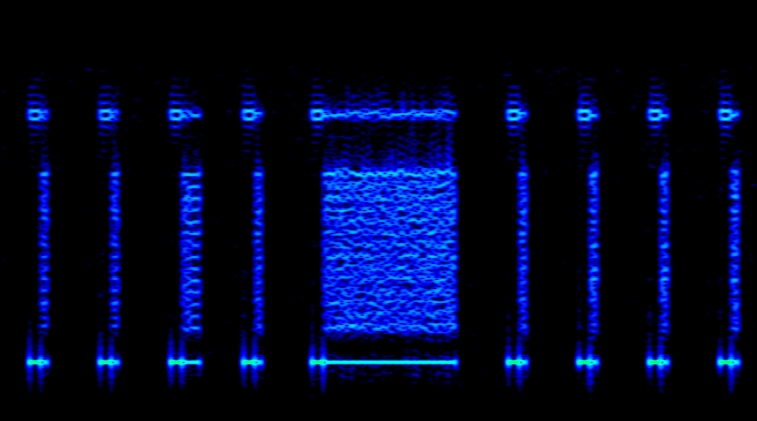

• FFT-Spectrum versus time, frequency and signal intensity

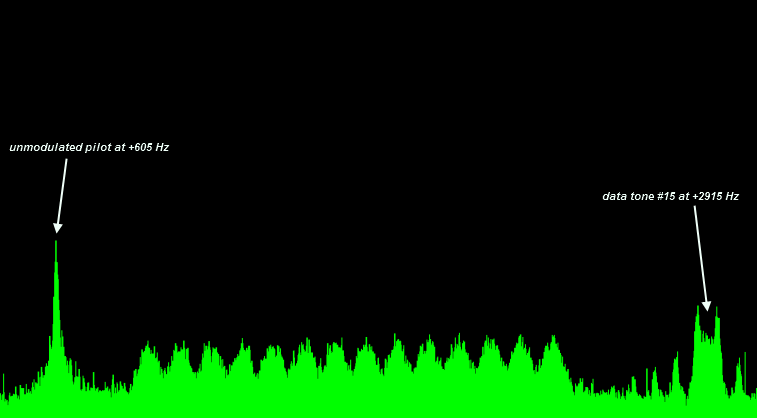

• FFT-Spectrum versus frequency and signal intensity

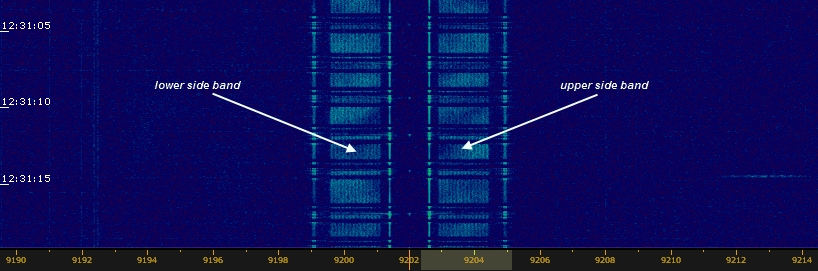

• LINK 11 circuit operating in ISB or DSB as seen on a wide band receiver:

---
