42-TONE / 48-TONE OFDM
(42 x 50 Bd or 48 x 50Bd / unidentified user)
FFT-SPECTRA
-

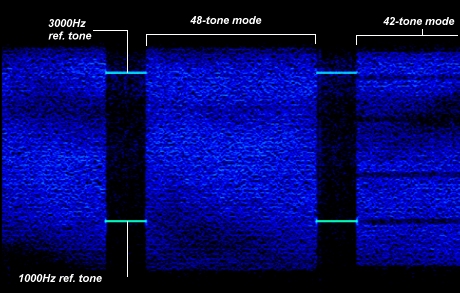

FFT-Spectrum versus time, frequency and
signal intensity (IRS-state with modem start preamble)
-

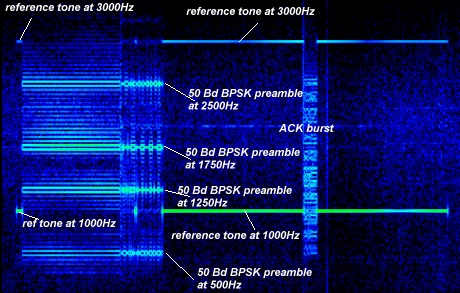

FFT-Spectrum versus time, frequency and
signal intensity (split screen showing IRS and ISS-state)
-

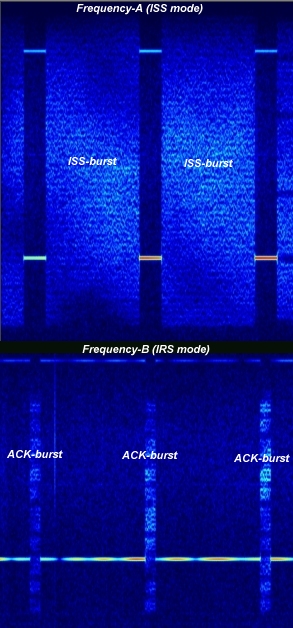

FFT-Spectrum versus time, frequency and
signal intensity (42-tone mode/ISS-state)
-

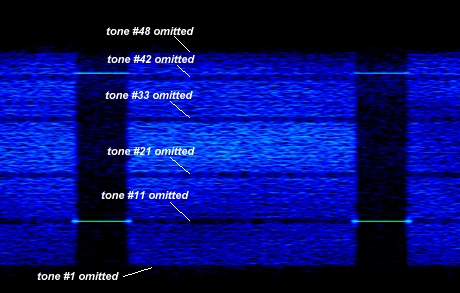

FFT-Spectrum versus time, frequency and
signal intensity (48+42-tone mode/ISS-state)
-

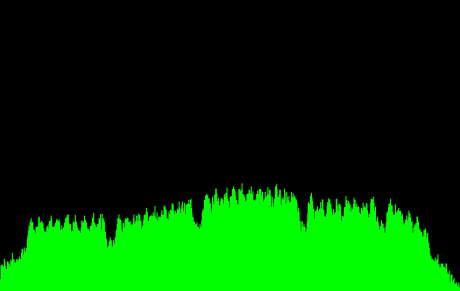

FFT-Spectrum versus frequency and signal
intensity (42-tone mode/ISS-state)
-

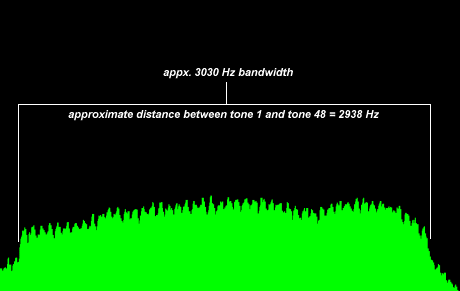

FFT-Spectrum versus frequency and signal
intensity (48-tone mode/ISS-state)
