RACAL / THALES PANTHER-H
INTELLIGENT FREQUENCY HOPPER
(SOC = START
OF CONVERSATION PROCEDURE/ 2400 Bd BURST / SERIAL TONE)
(SOM = START
OF MESSAGE PROCEDURE/ 2400 Bd BURST / SERIAL TONE)
-

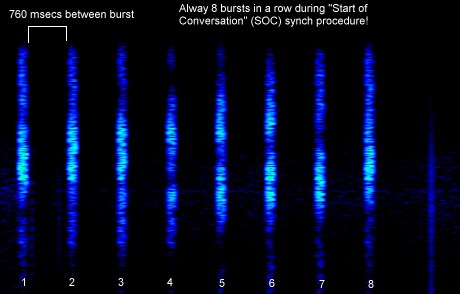

FFT-Spectrum versus time, frequency and
signal intensity
-

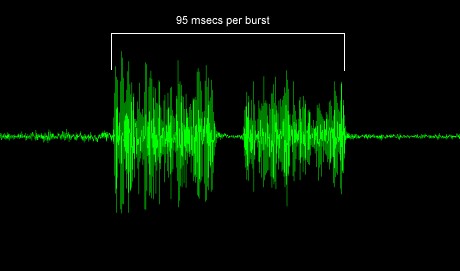

FFT-Spectrum versus timing and signal intensity
(single burst)
-

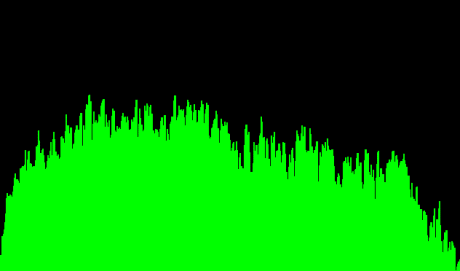

FFT-Spectrum versus frequency and signal
intensity (aggregated)
-

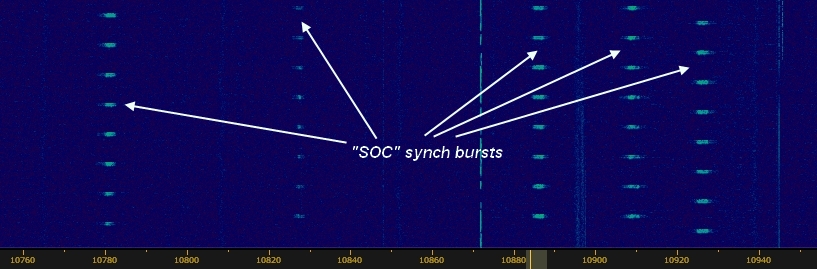

"SOC" (Start of Conversation) procedure
on several hop frequencies as seen on a wide band receiver:
-

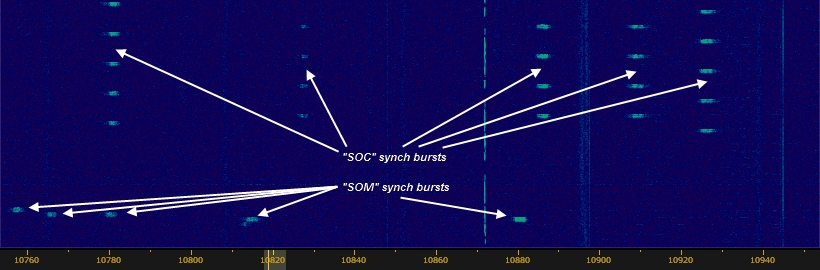

"SOC" and "SOM" (Start of Message) Procedure
on several hop frequencies as seen on a wide band receiver:
