RUSSIAN MFSK-16

16-TONE 40 Bd HYBRID MFSK SYSTEM

(Russian intelligence / probably an experimental mode)

FFT-SPECTRA

---

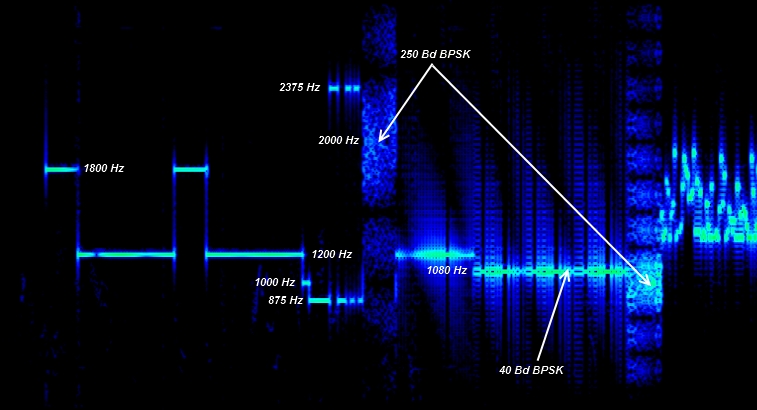

• FFT-Spectrum versus time, frequency and signal intensity (start of message preamble)

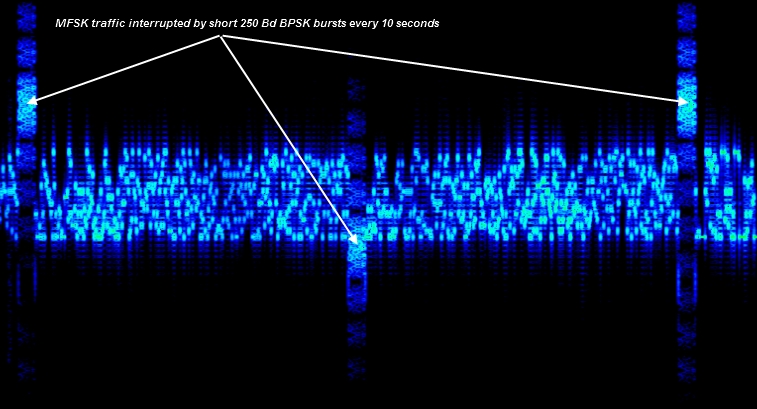

• FFT-Spectrum versus time, frequency and signal intensity (station sending MFSK traffic)

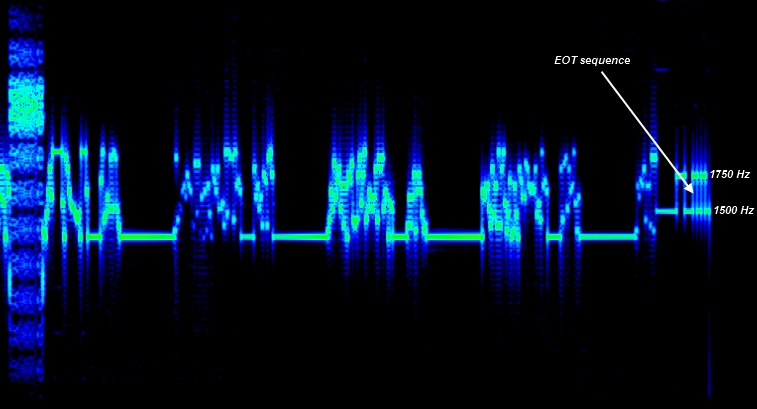

• FFT-Spectrum versus time, frequency and signal intensity (end of traffic sequence)

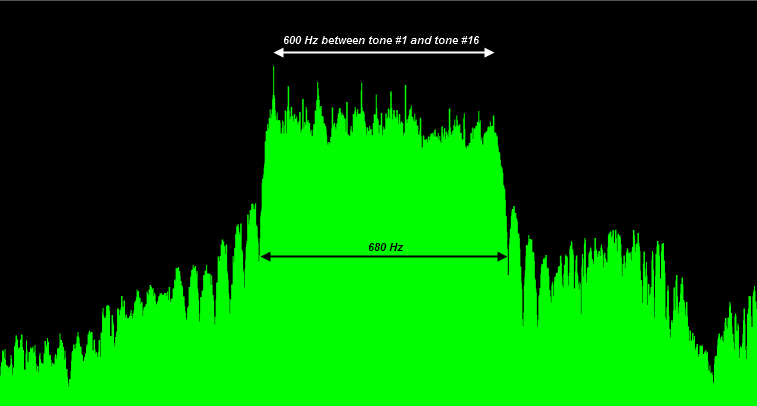

• FFT-Spectrum versus frequency and signal intensity

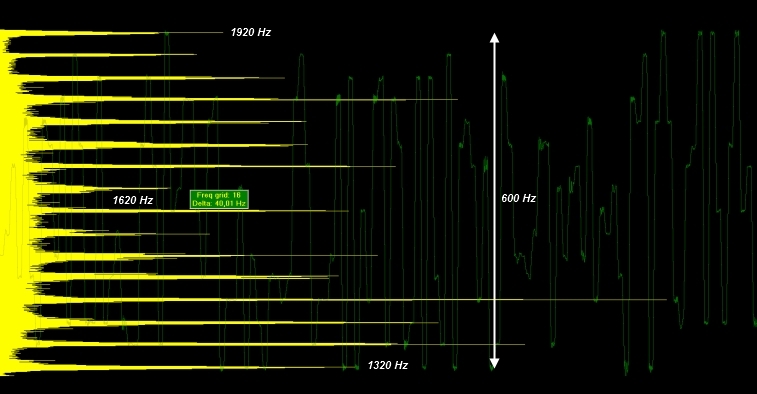

• Tone distribution over a period of appx. 3 seconds

---
