STANAG 4538 FLSU
(3G ALE / 8-PSK / BW5 WAVEFORM)
FFT SPECTRA

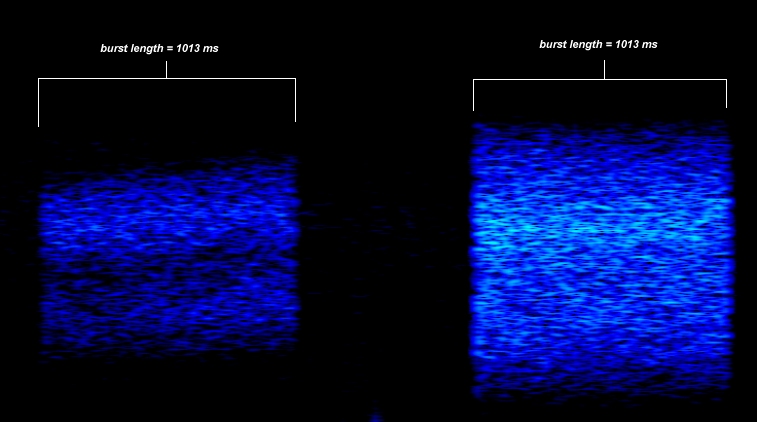

FFT-Spectrum versus time, frequency and signal intensity

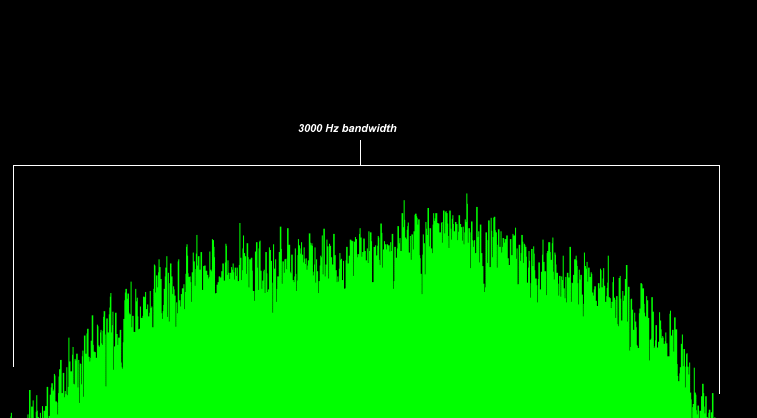

FFT-Spectrum versus frequency and signal intensity
The baudrate can easily be determined by the baudrate line:

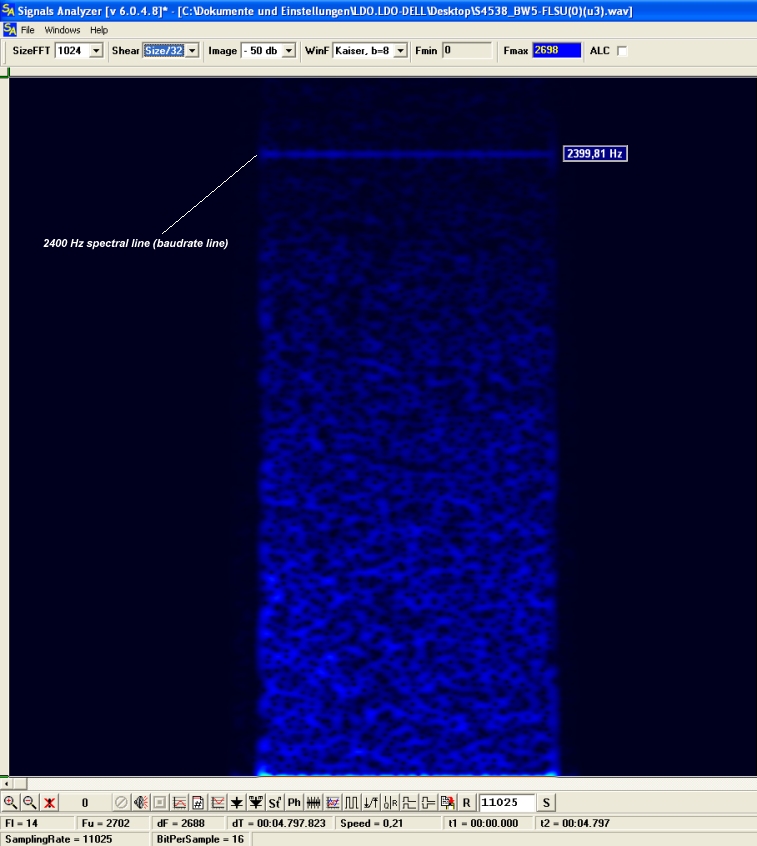

FFT-Spectrum showing the baudrate line:

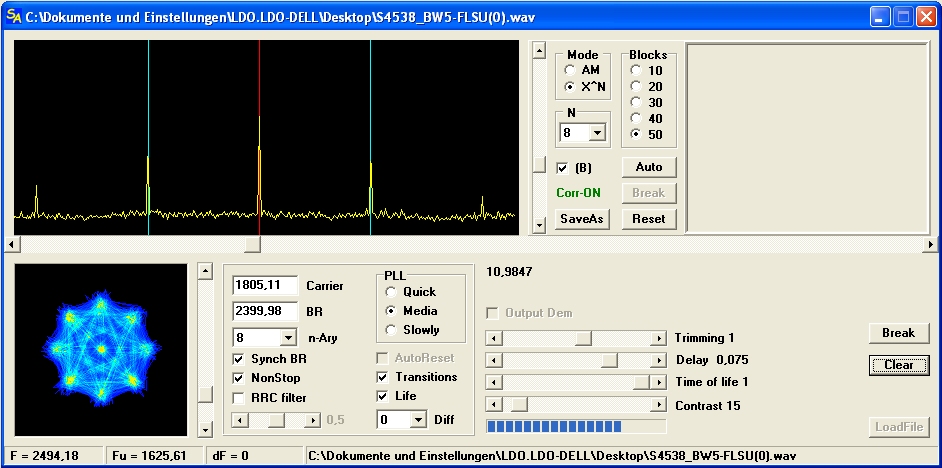

Phase Plane Spectrum
