SuperDARN OTHR-SYSTEM

(Super Dual Auroral Radar Network)

---

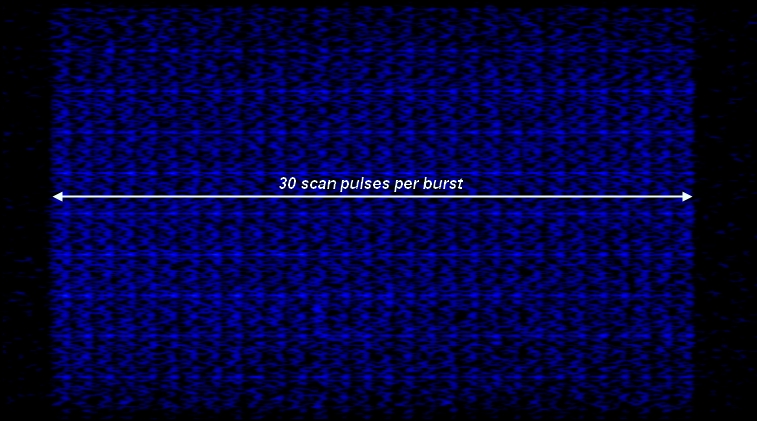

• FFT-Spectrum versus time, frequency and signal intensity

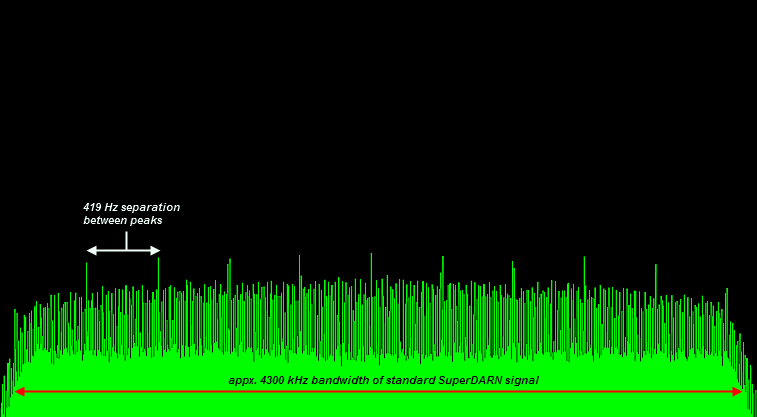

• FFT-Spectrum versus frequency and signal intensity

(4000 Hz span)

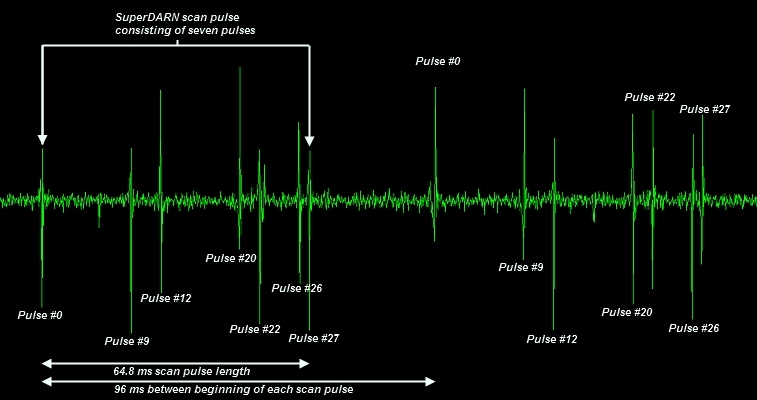

• FFT-Spectrum of SuperDARN scan pulse versus timing and signal intensity (2 scan pulses)

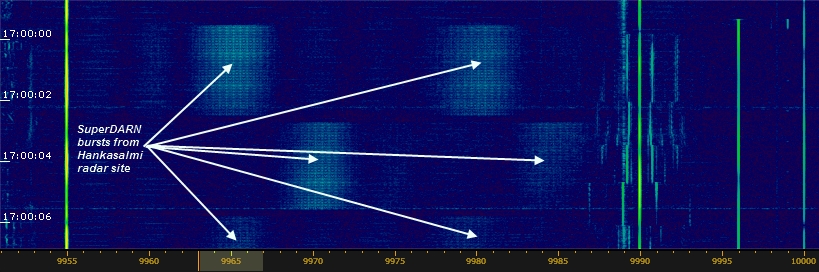

• SuperDARN/CUTLASS system in "Stereo" mode as seen on a wide band receiver

---
