Portuguese Navy, Monsanto, Lisboa
(Centro de Comunicações, de Dados e de Cifra da Marinha)
All material Copyright © 1998 - 2008
No content on this website may be used or published without written permission of the author!

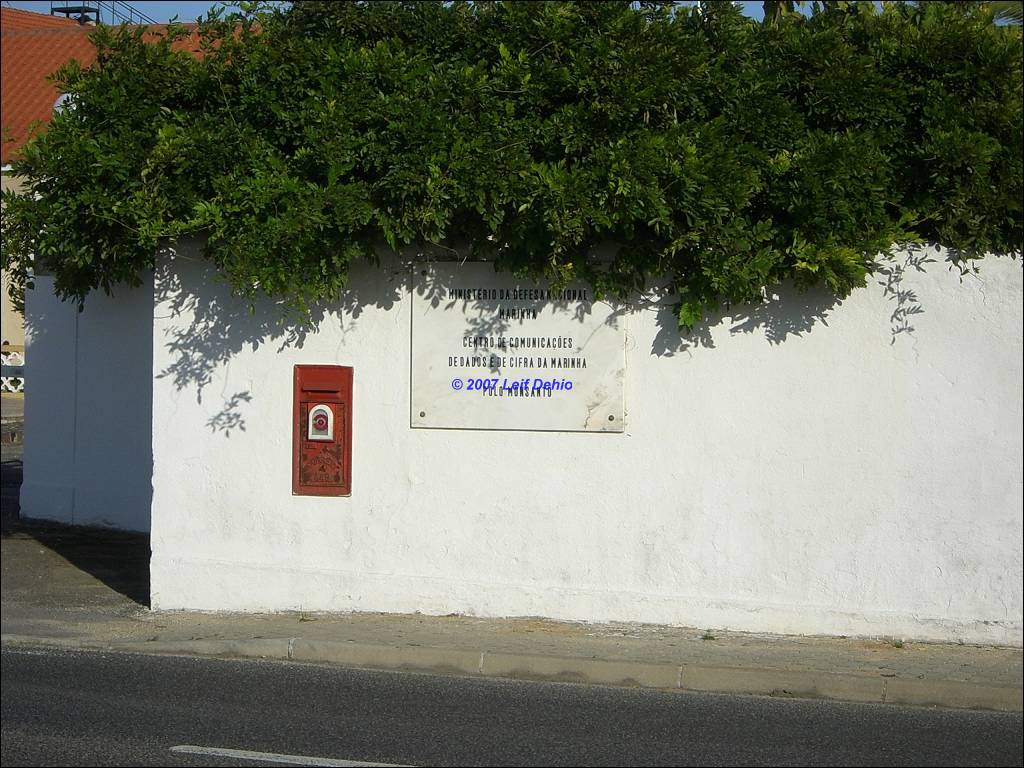

Sign at the main gate to the station

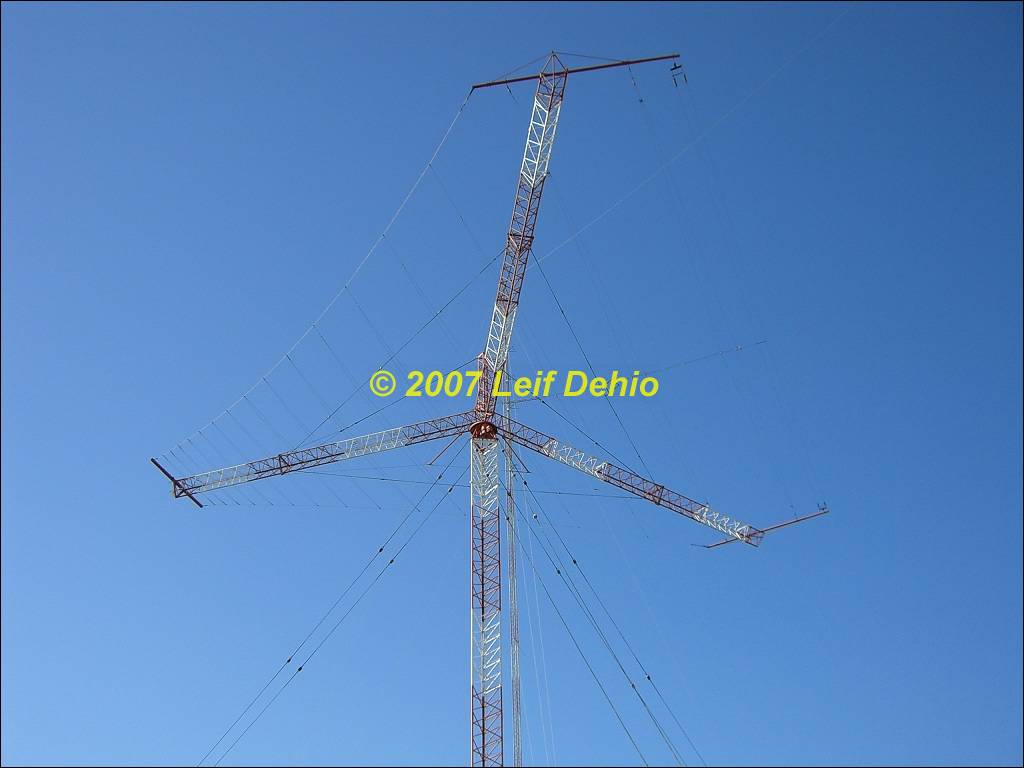

Rotateable horizontal wire Log Periodic antenna (view 1)
Rotateable horizontal wire Log Periodic antenna (view 2)
Rotateable horizontal wire Log Periodic, Inverted Cone antenna, tower of LF antenna and broadband HF dipole

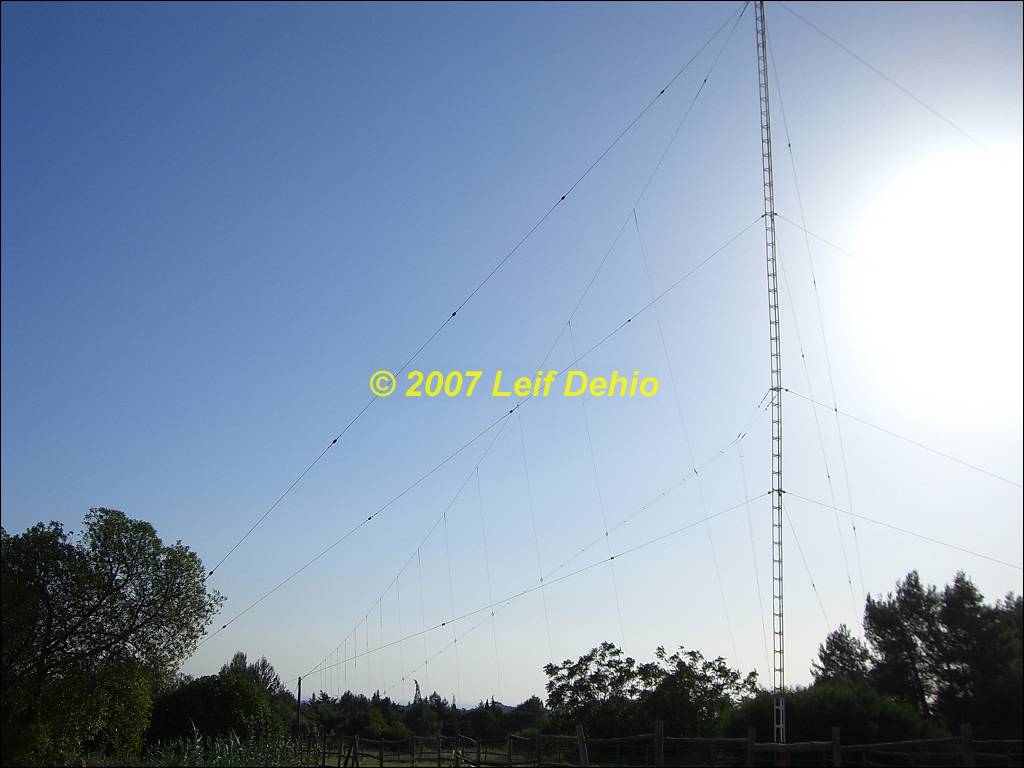

Andrew 1703 type fixed vertical Log Periodic antenna (view 1)

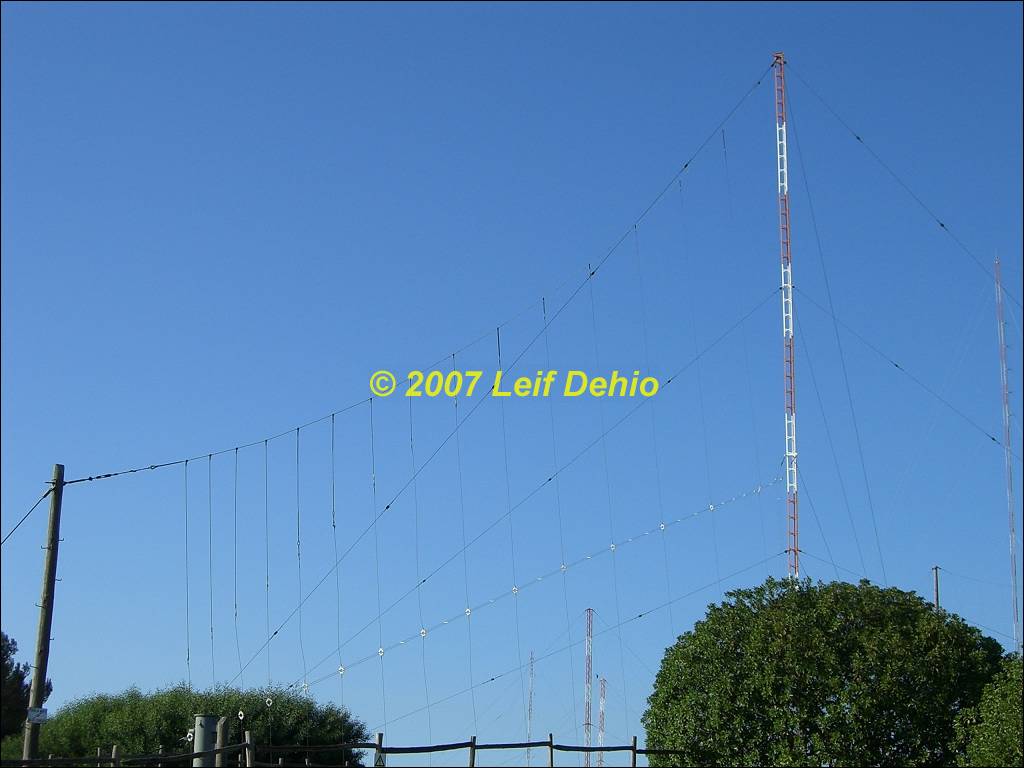

Andrew 1703 type fixed vertical Log Periodic antenna (view 2)

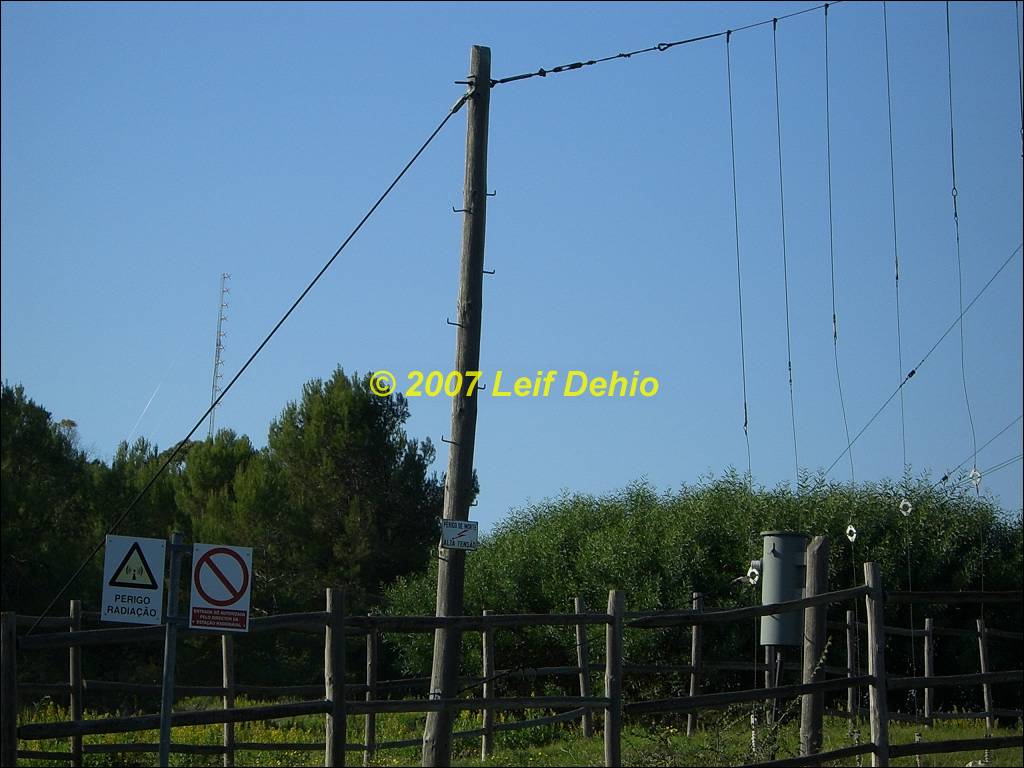

Andrew 1703 type fixed vertical Log Periodic antenna (antenna feedpoint with wooden pole)

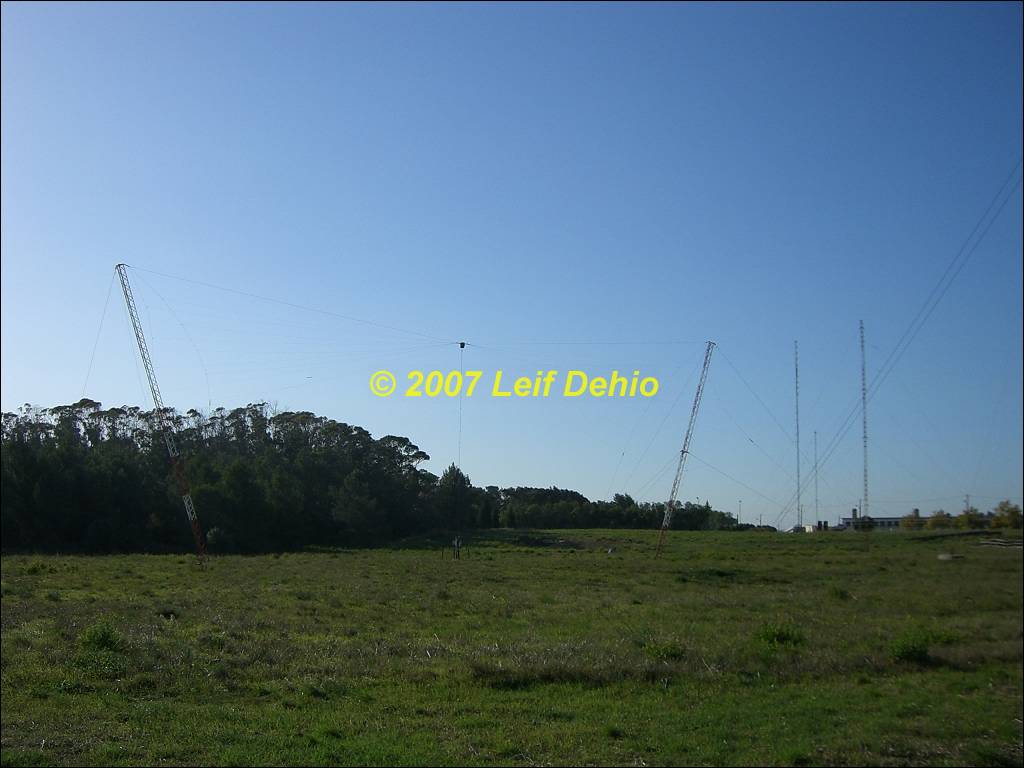

Andrew 1765 type "Fan Dipole" antenna

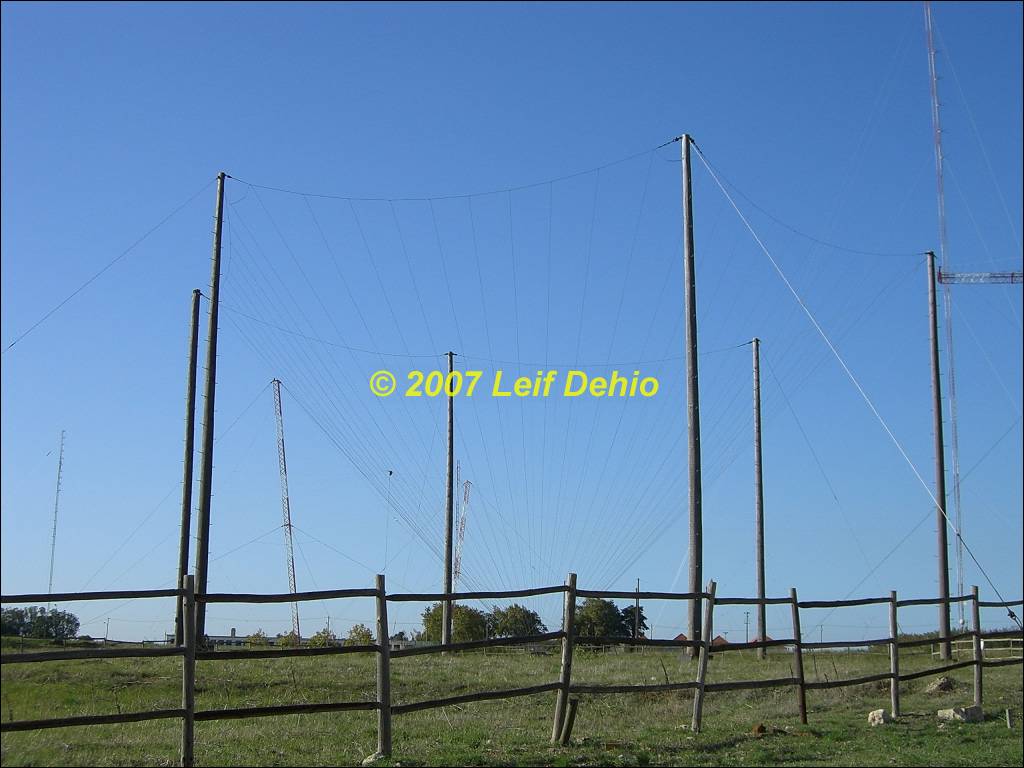

TCI 505 type "Inverted Cone" antenna with wooden poles and Andrew 1765 type "Fan Dipole"
(in the background)

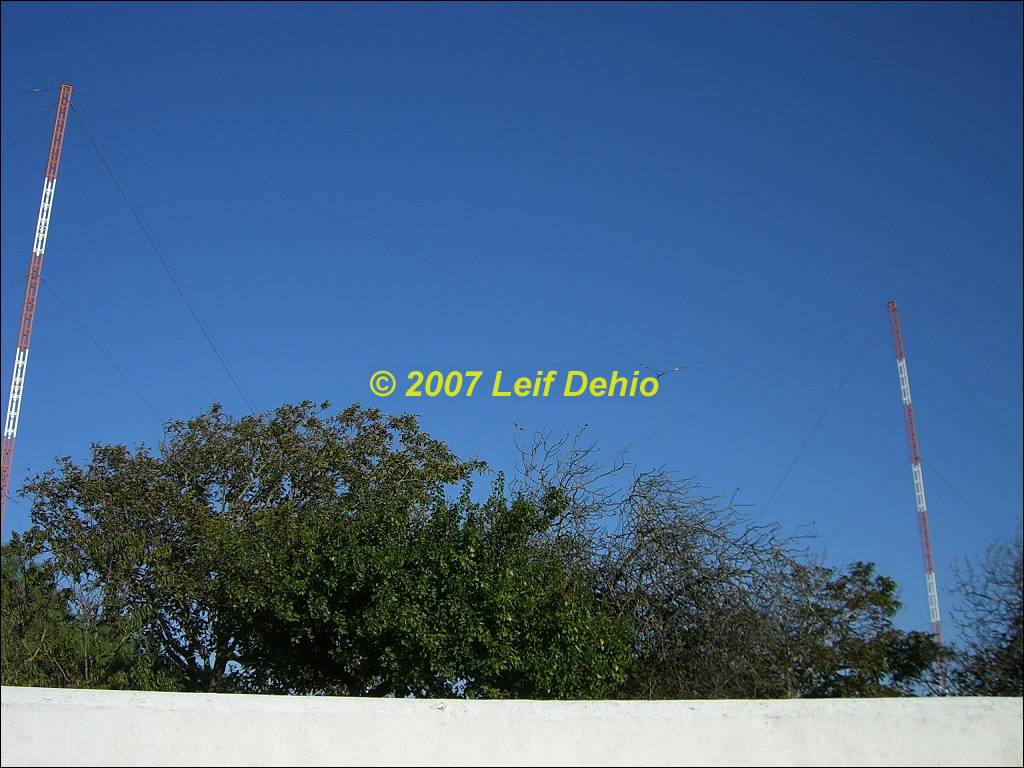

Broadband horizontal Dipole antenna
